SZG-ADC-LT2264-12
Dual 40 MSPS 12-bit ADC
1 pc
Add to cart

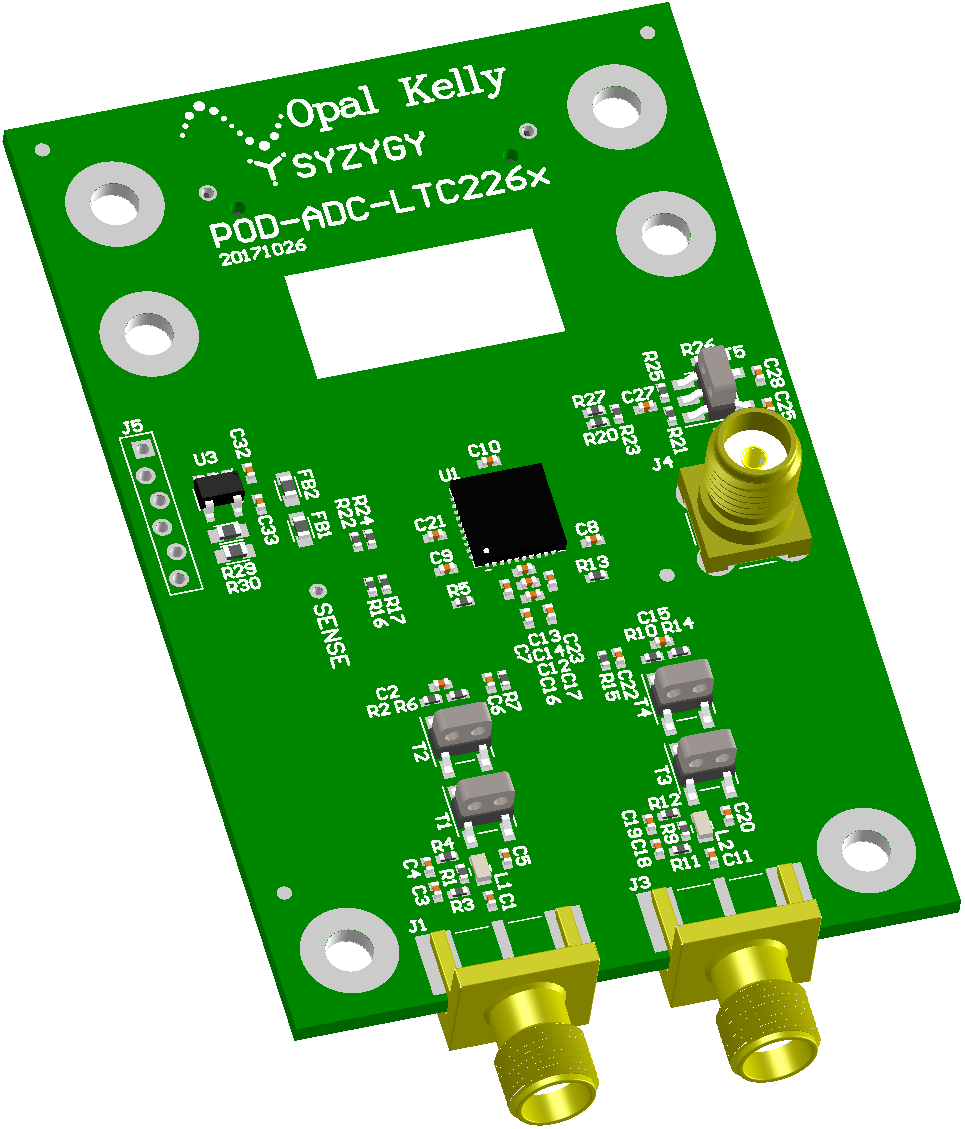

The SZG-ADC-LT2264 is a dual 40 MSPS 12-bit ADC based on the Analog Devices LTC2264. The board is heavily influenced by the manufacturer’s evaluation board and features a 50Ω input with isolation transformer. In the default configuration, the sampling clock is driven by the FPGA with an option to provide an external single-ended clock source via SMA connector.


Technical Specifications and Support

Features & Specifications

  • SYZYGY Standard Peripheral
  • Dual (2-channel) 40 MSPS 12-bit ADC
  • ADC family is available to 65 MSPS and 14-bit resolution (not available through Opal Kelly)
  • LVDS output to the FPGA
  • Ultralow jitter allows undersampling of IF frequencies
