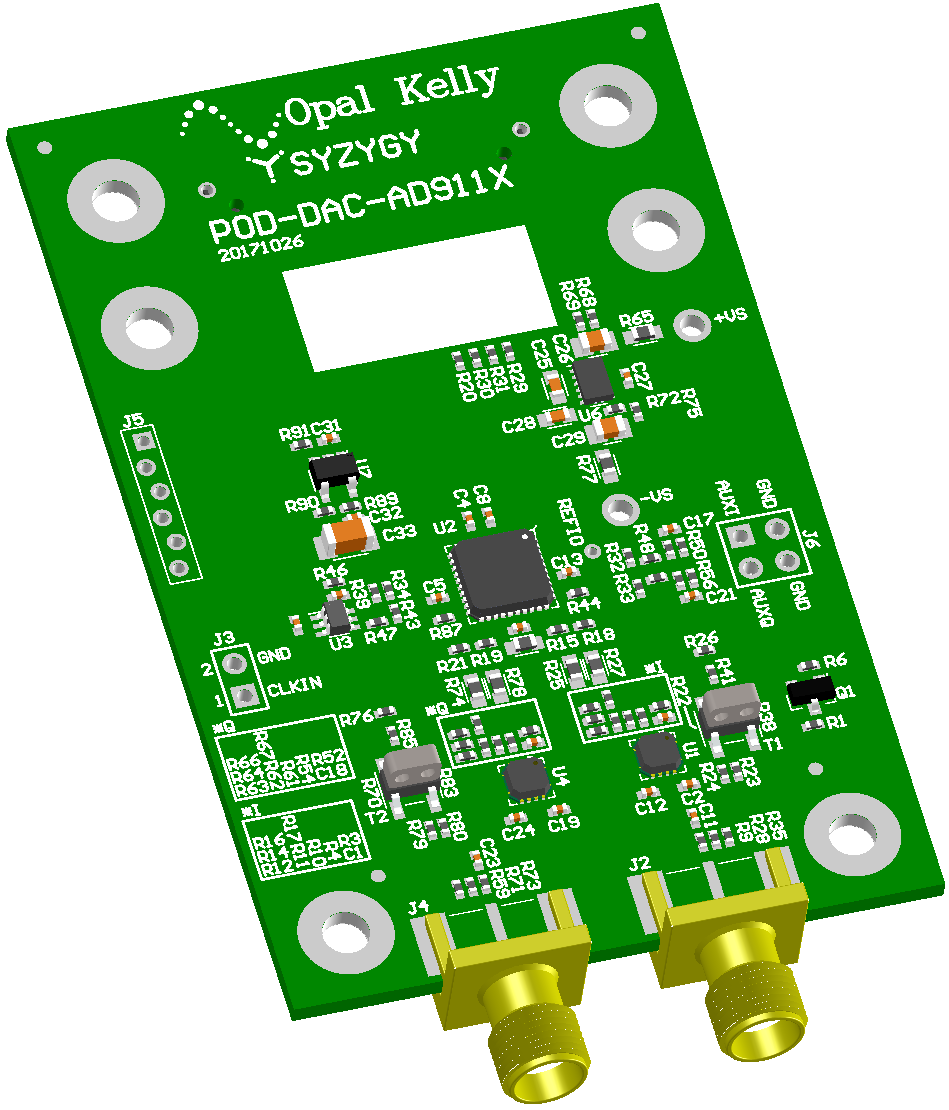

SZG-DAC-AD911X
Status: Production
The SZG-DAC-AD9116 is a dual 125 MSPS 12-bit DAC in the Analog Devices TxDAC family of data converters.
Technical Specifications and Support
Technical Specifications and Support
Features & Specifications
Features & Specifications
- SYZYGY Standard Peripheral
- Dual 125 MSPS, 12-bit DAC
- No output anti-alias filter -- great for synthesis beyond the Nyquist frequency
- Ideal for SDR (software-defined radio) applications
Additional Information:
Block Diagram Link
SlideDeck Link
Product Note
Short Description
is End of Life?
No
is Limited Production?
No
show FrontPanel SDK?
show Step Pricing Info?
No
